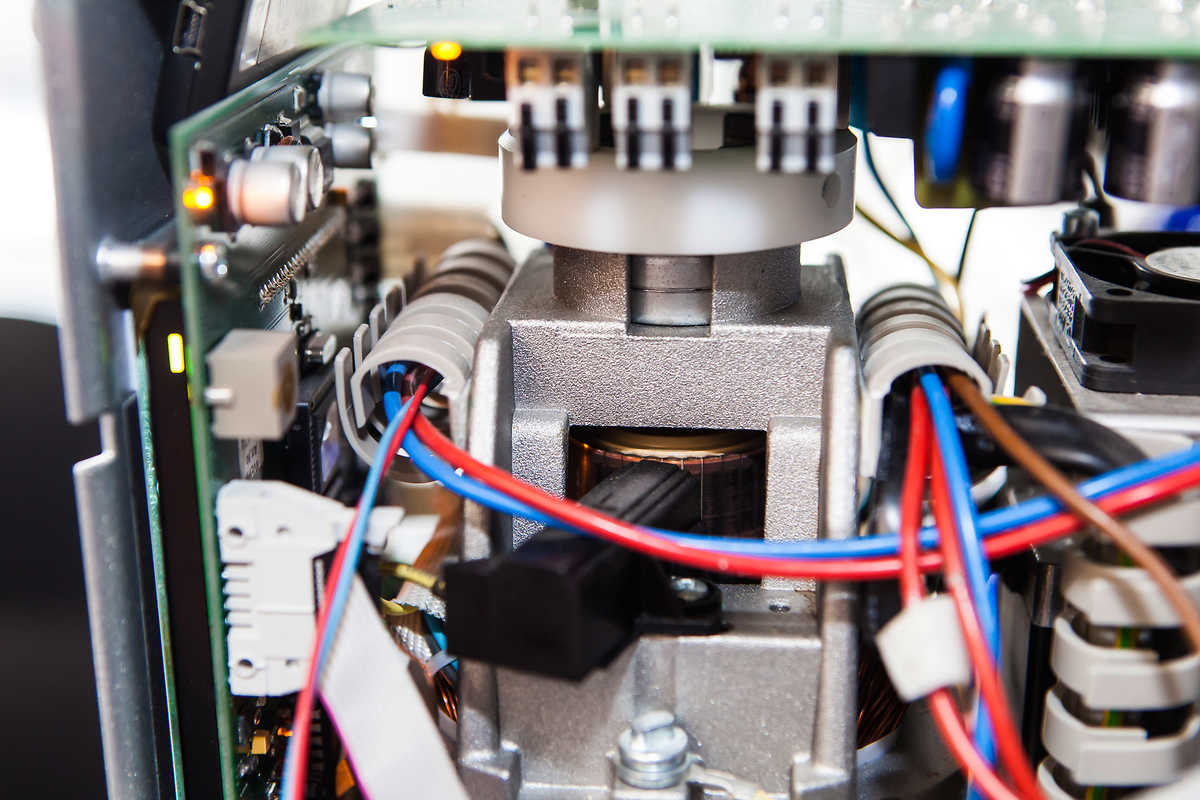

Motor speed control unit

MG_2893

This application combines power electronics with digital signalprocessing (DSP) for velocity control of a brushed DC motor operated with AC mains voltage.

Application:

Brushed DC-motor speed control with diagnostic functions of mixer for medication.

Features:

  • Nominal power: 2kW (3,5kW peak).
  • Speed range: from 200 to 4000 rpm.
  • Control errror: < 0,5%.
  • Digital and optical decoupled input and output for control and diagnostics.

Quantities:

500 units per year

^
