Smart drive system

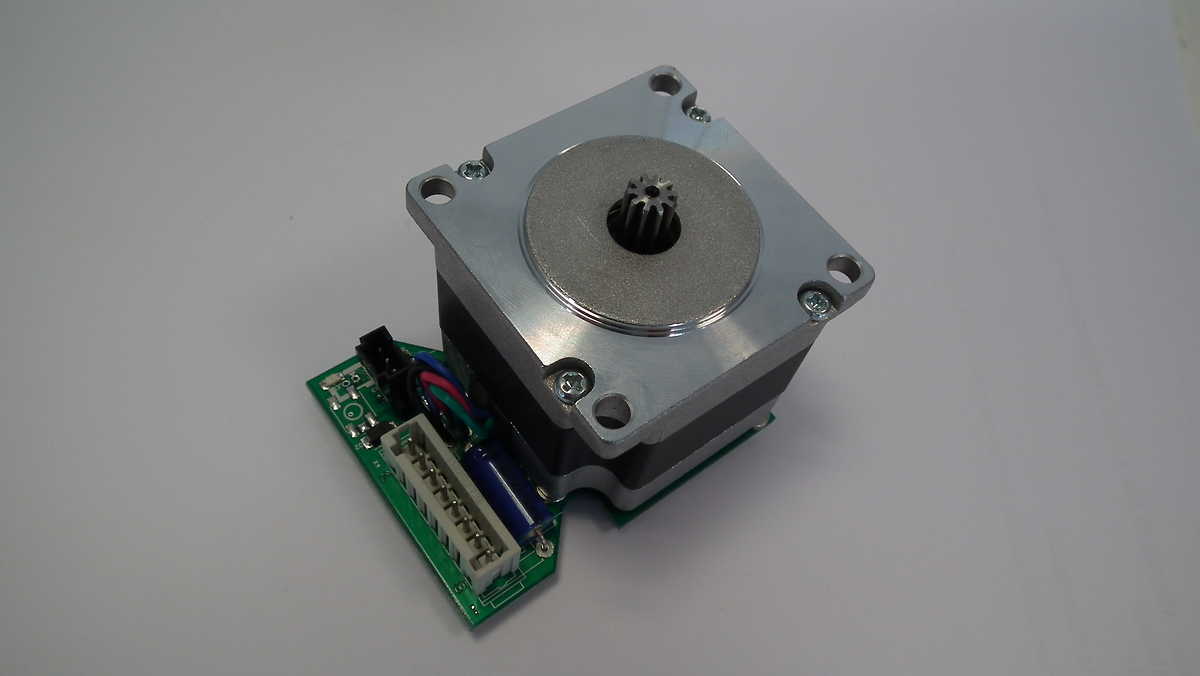

DSCF4229

Rotational positioning functions can be realized using a stepper motor with a directly adapted electronic control unit. This system contains motor, sensor, drive and smart control. It creates great customer value at a cost effective price.

Application:

Shutter to control the brightness of UV illumination facilities.

Features:

  • Steppermotor with microstepping driver and position Control.
  • Closed loop control with integrated angular sensor (10bit resolution absolute).
  • Namur reference sensor can be attached directly.
  • Gear wheel directy milled into the motor shaft.
  • Internal logging of operating hours, cycles and other operational data.

Quantities:

> 500 units per year
